Deploy Envoy Gateway TCP Routes

Posted Updated
By Riz 5 min read

TCP Routes in envoy gateway allow routing TCP traffic in managed way similar to http.

This post is inspired by this post on envoy gateway site.

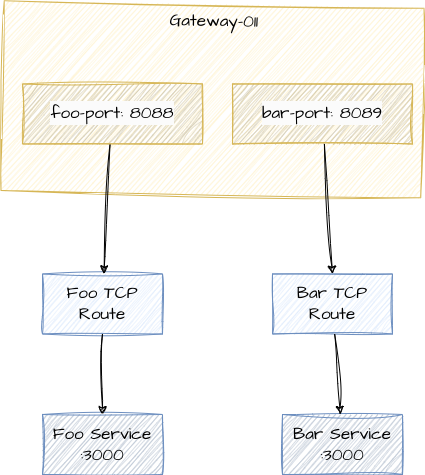

This blog post will set up the following:

alt text

There are:

  • 2 services foo and bar they are in their own namespaces
  • 2 tcp routes within the namespaces
  • gateway-01 class and associated proxy, the proxy is in the envoy-gateway-system namespace
  • gateway definition with listeners in gateway-01 namespace.

First install envoy proxy system using helm

1

helm install envoy-gateway oci://docker.io/envoyproxy/gateway-helm --version v0.6.0 -n envoy-gateway-system --create-namespace

Create an envoy proxy with custom config and associated gateway class. The aws-loadbalancer annotations are optional

1

kubectl create ns gateway-01

Create a gateway class

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

kubectl apply -n gateway-01 -f - <<EOF
apiVersion: gateway.envoyproxy.io/v1alpha1
kind: EnvoyProxy
metadata:
  name: custom-proxy-config
  namespace: envoy-gateway-system
spec:
  provider:
    type: Kubernetes
    kubernetes:
      envoyDeployment:
        replicas: 3
      envoyService:
        annotations:
          service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: instance
          service.beta.kubernetes.io/aws-load-balancer-backend-protocol: tcp
          service.beta.kubernetes.io/aws-load-balancer-internal: 'true'
          service.beta.kubernetes.io/aws-load-balancer-scheme: internal
          service.beta.kubernetes.io/aws-load-balancer-type: nlb
---
kind: GatewayClass
apiVersion: gateway.networking.k8s.io/v1
metadata:
  name: gateway-01
spec:
  controllerName: gateway.envoyproxy.io/gatewayclass-controller
  parametersRef:
    group: gateway.envoyproxy.io
    kind: EnvoyProxy
    name: custom-proxy-config
    namespace: envoy-gateway-system
EOF

Define listeners for the gateway class. This tells the proxy to listen to these ports

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

kubectl apply -n gateway-01 -f - <<EOF
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: gateway-01
spec:
  # attach the gateway to the gateway class
  gatewayClassName: gateway-01
  listeners:
    # listens on 8088
    - name: foo-port
      protocol: TCP
      port: 8088

      # allow TCPRoute from any namespace to be attached to this listener
      allowedRoutes:
        namespaces:
          from: All
        kinds:
          - kind: TCPRoute

    # listens on 8089
    - name: bar-port
      protocol: TCP
      port: 8089

      # allow TCPRoute from any namespace to be attached to this listener
      allowedRoutes:
        namespaces:
          from: All
        kinds:
          - kind: TCPRoute
EOF

Create a foo service with deployment. The service echo http headers and service name of foo Create the namespace

1

kubectl create ns foo-ns

Create service and deployment

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49

kubectl apply -n foo-ns -f - <<EOF
apiVersion: v1
kind: Service
metadata:
  name: foo-service
  labels:
    app: foo
spec:
  ports:
    - name: http
      port: 3000
      targetPort: 3000
  selector:
    app: foo
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: foo-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: foo
      version: v1
  template:
    metadata:
      labels:
        app: foo
        version: v1
    spec:
      containers:
        - image: gcr.io/k8s-staging-ingressconformance/echoserver:v20221109-7ee2f3e
          imagePullPolicy: IfNotPresent
          name: foo
          ports:
            - containerPort: 3000
          env:
            - name: POD_NAME
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
            - name: NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
            - name: SERVICE_NAME
              value: foo
EOF

Create a bar service with deployment. The service echo http headers and service name of bar

Create namespace

1

kubectl create ns bar-ns

Create service and deployment

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49

kubectl apply -n bar-ns -f - <<EOF
apiVersion: v1
kind: Service
metadata:
  name: bar-service
  labels:
    app: bar
spec:
  ports:
    - name: http
      port: 3000
      targetPort: 3000
  selector:
    app: bar
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: bar-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: bar
      version: v1
  template:
    metadata:
      labels:
        app: bar
        version: v1
    spec:
      containers:
        - image: gcr.io/k8s-staging-ingressconformance/echoserver:v20221109-7ee2f3e
          imagePullPolicy: IfNotPresent
          name: bar
          ports:
            - containerPort: 3000
          env:
            - name: POD_NAME
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
            - name: NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
            - name: SERVICE_NAME
              value: bar
EOF

Create tcp route for foo

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

kubectl apply -n foo-ns -f - <<EOF
apiVersion: gateway.networking.k8s.io/v1alpha2
kind: TCPRoute
metadata:
  name: foo-tcp-route
spec:
  parentRefs:
    # the name of the Gateway and listener
    - name: gateway-01
      sectionName: foo-port
      namespace: gateway-01
  rules:
    - backendRefs:
        # destination service & port
        - name: foo-service
          port: 3000
EOF

Create tcp route for bar

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

kubectl apply -n bar-ns -f - <<EOF
apiVersion: gateway.networking.k8s.io/v1alpha2
kind: TCPRoute
metadata:
  name: bar-tcp-route
spec:
  parentRefs:
    # the name of the Gateway and listener
    - name: gateway-01
      sectionName: bar-port
      namespace: gateway-01
  rules:
    - backendRefs:
        # destination service & port
        - name: bar-service
          port: 3000
EOF

If using minikube for testing, use minikube tunnel to associate ip to envoy proxy service

1

minikube tunnel

Test

1
2

# to call foo service
curl http://10.98.159.232:8088

output example:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

{
 "path": "/",
 "host": "10.98.159.232:8088",
 "method": "GET",
 "proto": "HTTP/1.1",
 "headers": {
  "Accept": [
   "*/*"
  ],
  "User-Agent": [
   "curl/8.5.0"
  ]
 },
 "namespace": "foo-ns",
 "ingress": "",
 "service": "foo",
 "pod": "foo-deployment-5c85498794-fxfrm"
}

Test bar service

1

curl http://10.98.159.232:8088

output example

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

{
 "path": "/",
 "host": "10.98.159.232:8089",
 "method": "GET",
 "proto": "HTTP/1.1",
 "headers": {
  "Accept": [
   "*/*"
  ],
  "User-Agent": [
   "curl/8.5.0"
  ]
 },
 "namespace": "bar-ns",
 "ingress": "",
 "service": "bar",
 "pod": "bar-deployment-5fdb677b4f-mnhhf"
}
k8s
eks k8s aws minikube envoy
This post is licensed under CC BY 4.0 by the author.
